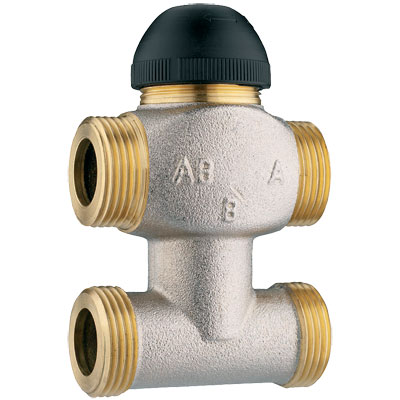

HERZ-термостатски трокрак мешачки вентил и разделување, со бајпасови

7763

HERZ-термостатски трокрак мешачки вентил и разделување, со бајпасови

Термостатски трокрак вентил за мешање и разделување, со бајпас

Елементи за поврзување на вентилите 7760, 7762 i 7763

HERZ Kleinventile für Zonenregelung flachdichtend, PN16
für stetige Regelung von Kalt- und Warmwasser

Betriebsdaten

  • Max. Betriebstemperatur 120 °C
  • Max. Betriebsdruck 16 bar
  • zulässige Betriebstemperatur 2° .. 120 °C (bei Wasser)

Bei Verwendung von elektrischen Antrieben sind die entsprechenden Angaben des Antriebsdatenblattes zu beachten. Damit in sehr ruhigen Räumen kein Strömungsgeräusch hörbar wird, darf die Druckdifferenz über dem Ventil folgende Werte nicht überschreiten:

Heizwasserqualität entsprechend ÖNORM H 5195 bzw. VDI-Richtlinie 2035. Die Verwendung von Frostschutzmittel auf Basis von Äthylenglykol ist im Mischungsverhältnis 15 - 45 % [Vol.] zulässig

Ventilkörper aus entzinkungsbeständigen Messing, vernickelt, Außengewinde nach ISO 228/1 Klasse B, Flachdichtung am Körper. Stopfbüchse mit O-Ring. Glykol beständig, Kegel aus Messing mit EPDM Dichtung, Spindel aus Niro Stahl Alle Modelle werden in vernickelter Ausführung mit schwarzer Kunststoff Schraubkappe geliefert.

HERZ-Normdiagramm


Šifra
1776350
1776360
1776370
1776380
1776351
1776361
1776362
